Epoxy Potting Production Line with Catilever Glue Potting

Epoxy Potting Production Line with Catilever Glue Potting
Epoxy Potting Production Line with Catilever Glue Potting
Epoxy Potting Production Line with Catilever Glue Potting Epoxy Potting Production Line with Catilever Glue Potting Epoxy Potting Production Line with Catilever Glue Potting Epoxy Potting Production Line with Catilever Glue Potting Epoxy Potting Production Line with Catilever Glue Potting Epoxy Potting Production Line with Catilever Glue Potting Epoxy Potting Production Line with Catilever Glue Potting

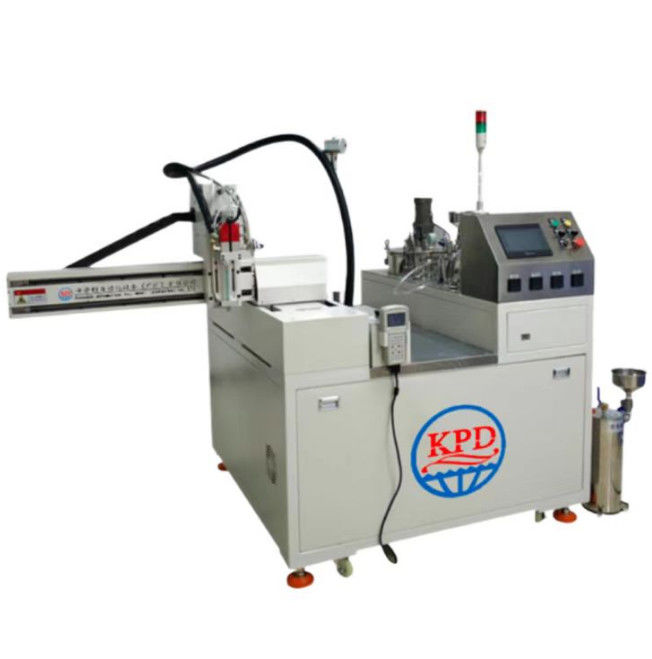

Large Image :  Epoxy Potting Production Line with Catilever Glue Potting

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $ 8500/pieces >=1 pieces
Delivery Time: 5-8 days
Payment Terms: T/T 、Western Union、Money Gram
Contact Now

Epoxy Potting Production Line with Catilever Glue Potting

Description
Condition: New Weight (KG): 260
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Meter Mix Pump Warranty: 1 Year
Applicable Industries: Electronic Potting Coating Sealing Bonding Showroom Location: Italy, Viet Nam, Thailand
Voltage: 220V Product Name: Glue Potting Machine
Type: Standalone Keyword: Ab Glue Potting Machine
After-sales Service Provided: Yes

Product Overview




catilever glue potting machine conveyor belt epoxy potting production line assembly line
This system is specially designed to handle dispensing and potting of medium and large-sized batches in production line. It combines all the advantages of the CNC systems plus a high-precision axis controller with attractive performance for the price. This makes it particularly suited for applying potting, seals as well as conformal coating of electronic assemblies and housing
Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio by two sets of high precision pumps, supply to a fully mixing design and then dispensing , dosing , dispensing the aimed products
Epoxies, silicones and polyurethane are among the most frequently used potting compounds. These can be applied to
PCBs,PCBA,capacitors,power electronics, LED lighting, sensors, and more.
OUR equipment with pre-heat functions that helps the pre-heat the AB compound in tank in advance to keep a good flow-ability.Good liquidity helps resin flow into product easily and evenly.
OUR machine with tank stirring vacuum degas functions ,which can help compounds to remove air bubble easily and arrived the good potting status .
Removing air bubbles is very important.Vacuum degassing remains a critical processing step. The best technique for vacuum degassing is referred to as "bumping degas" which is alternately pulling and relaxing a vacuum in 30- to 60-second cycles.
FEATURES AT A GLANCE
1. Vacuum material-feeding system or diaphragm pump feeding system
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system
6. Heating function
7. automatic cleaning function.

Epoxy Potting Production Line with Catilever Glue Potting 0
Epoxy Potting Production Line with Catilever Glue Potting 1
304stainless steel tank
Epoxy Potting Production Line with Catilever Glue Potting 2
Meter mix pump
Epoxy Potting Production Line with Catilever Glue Potting 3
High-quality motion components

Working principle

The machine will have two tanks for keeping Liquid A & B separately.
There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data .
Epoxy Potting Production Line with Catilever Glue Potting 4
PRODUCT SPECIFICATIONS
Models:
KPD-6050 Automatic Multifunctional Glue Potting Machine
Suitable process:
It can be used as a stand-alone machine or with the customer’s original assembly line to achieve on-line gluing.
Proportion of glue:
10:1 – 1:1
hybrid approach:
Dynamic stirring mixing/static
Machine Stroke:
600x500x100mm
speed
X,Y axle 400mm/s
accurate
±0.05mm
Programme stock:
999
programmer
Teach-In Programming
metrological:
High precision metering pumps
control method:
PLC+touchscreens
input method:
Touch screen + buttons + IO
Appearance Material:
Industrial square tube welding + 6061 alloy + cold rolled plate
Drum size:
A barrel 30L, B barrel 10L (can be customised)
External Dimensions:
1100×1350 X1600mm
Gum flow rate:
1–80g/5sec (customised large glue volume available)
trajectory:
Punching points, walking straight lines, curves, drawing circles, arcs, squares, and other irregular shapes.
Supply Voltage:
AC220V/50HZ

Successful Project
Epoxy Potting Production Line with Catilever Glue Potting 5

Electronics Potting

Besides printed circuit board PCB, there are many electronics components must be protected during operating such as transformers, coils, drivers, power supply units, chargers, motors and so on. Specific potting compound and system would be used to meet your
demand.
Epoxy Potting Production Line with Catilever Glue Potting 6

Plug and Cable Potting

Even the tiniest gaps in plug housings, connectors, and power supply units can be filled by potting masses. Potting materials for plugs and cables are flexible, highly water-resistant, mechanically stable, and tear-resistant.
Epoxy Potting Production Line with Catilever Glue Potting 7

LED Potting

Transparent or opaque potting systems protect LEDs from water, dust, and other atmospheric influences, enabling effective potting as well as optimal light scattering for spotlight. Additionally, our mixing and dosing system for LED potting avoids air bubbles and smears making optimal protection possible.
Epoxy Potting Production Line with Catilever Glue Potting 8

Filter Potting

Potting compounds are used to join end-caps of various kinds of filters, as well as for gluing and sealing filters to the filter frame. This provides a leakage-free sealing of the frames and allows for the filtering of clean air. Foamed potting for bonding the filter medium into the filter frame enables cost and weight reductions, also meeting the high-quality requirements.
Epoxy Potting Production Line with Catilever Glue Potting 9

Aquarium Water Pump

Aquarium Water Pump usually works in extreme environment: water, vibration and chemical (oil). As a result, potting compounds are designed to provide extremely low water absorption, good chemical resistance, and exceptional thermal conductivity.
Epoxy Potting Production Line with Catilever Glue Potting 10

Automotive Electronics

Electrical potting compounds are commonly used within the automotive industry, and with the rise of electric vehicles, they are increasingly important in both conventional automotive electronics and as part of ADAS systems. In particular, polyacrylate electronics potting materials deliver the ideal set of characteristics for use in sensors and other components regularly exposed to oil and grease.

More sucessful project

Potting in Every Industry
Protective potting layers benefit various manufacturing industries including electronics, equipment involving electronic components, or even filter and electrical plug & cable industries. Whatever your industry is, contact us for more detailed information.
1.Potting&Dispesing&Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reversesensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....
Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure package , soli relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , boattery cover , rectifier and so on

.2Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling...

3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....

SIMILAR PRODUCTS
Epoxy Potting Production Line with Catilever Glue Potting 11
Epoxy Potting Production Line with Catilever Glue Potting 12
Epoxy Potting Production Line with Catilever Glue Potting 13
Epoxy Potting Production Line with Catilever Glue Potting 14
SALES AND SERVICE NETWORK
Epoxy Potting Production Line with Catilever Glue Potting 15
FAQ
Q1:Do you offer oversea service? A1:We can offer online traning service and also can offer oversea service if customer required, engineer will offer face to face service. Q2:How dose your factory do regarding quality control? A2:We assure 1 year warranty for the main part,also we offer spare part for back up.Please check with sales engineer in detail. Q3:What are your payment terms? A3: Normally, 50% advance by T/T and balance paid off before delivery.
Q4:Are you a factory or trading company ? A4: We are a factory with SGS certified and more than 20 patents,and cooperate with different customers coverd about 40 countries for over 15 years. Q5: Machine always drops resin A5: Drops always happened when valve closed . The reason may be low concentration of glue , big air-pressure or large diameter of needles. Narrow needles will effect the flow of the liquid and cause back pressure . It will lead to dropping when the valve closed . Too narrow needles will effect the drainage of air when valve start to work, but it can be solved if change suitable needles . Conical needles with less back pressure and liquid flow smoothly . It is better to drainage of the air advance or use no-foam glue or deaeration to avoid the air cause dropping after valve closed . Q6: Glue dropping not evenly A6:the problem cause mainly because of the storage flow pressure tank or air pressure is not stable. Inlet pressure regulating table should be set lower 10-15psi than factory minimum pressure . The pressure in pressure tank should be set upper than the middle pressure of regulating table . It should be avoided to use the pressure lower than the middle pressure of regulating table . Control pressure of rubber valve at least higher than 60psi to assured glue evenly . We should check the glue output speed at last . The glue is uneven if the time less than 15/1000s , the output speed more longer , the glue dispensing will be more stable .
