KPD Custom Automatic Mixing and Measuring Two-Component Epoxy Resin Glue Filling Machine

Name: KPD Custom Automatic Mixing and Measuring Two-Component Epoxy Resin Glue Filling Machine
Brand: KPD Custom Automatic Mixing and Measuring Two-Component Epoxy Resin Glue Filling Machine
SKU: KPD Custom Automatic Mixing and Measuring Two-Component Epoxy Resin Glue Filling Machine
Price: 8500 USD
Availability: InStock
Rating: 4.9 (148 reviews)

All Products

Glue Potting Machine
(539)

Epoxy Potting Machine
(148)

Resin Potting And Encapsulation Machine
(18)

Meter Mix Dispensing Machine
(127)

Glue Spraying Machine
(80)

PU Spraying Machine
(20)

I'm Online Chat Now

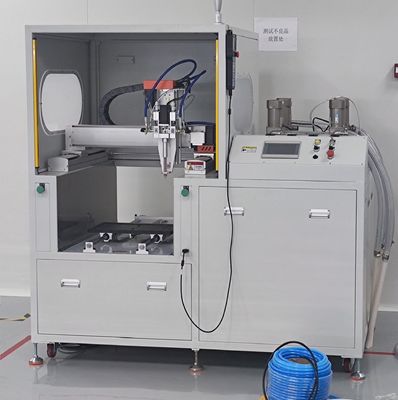

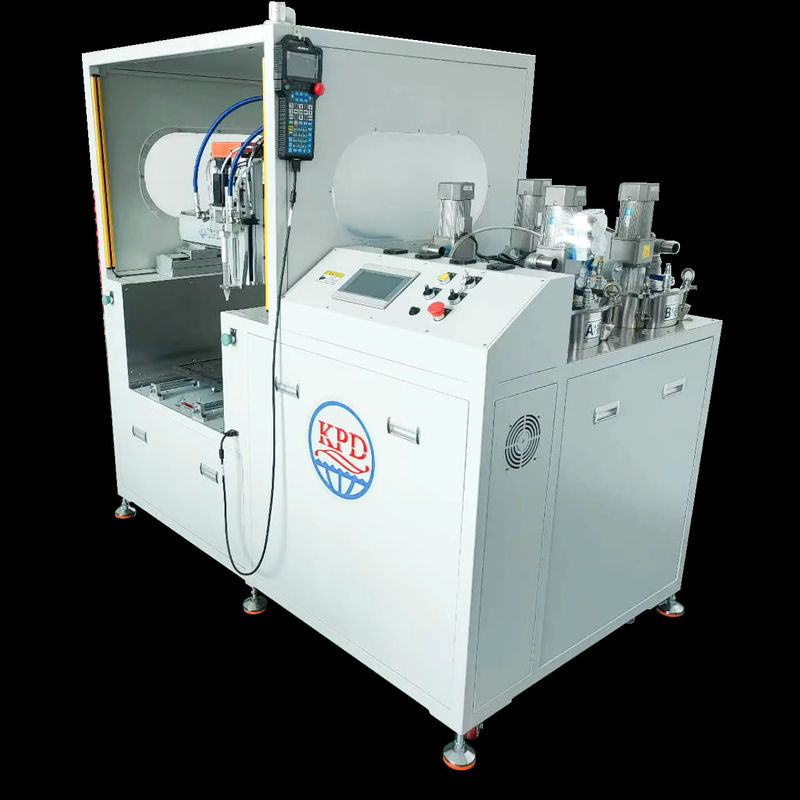

KPD Custom Automatic Mixing and Measuring Two-Component Epoxy Resin Glue Filling Machine

Large Image : KPD Custom Automatic Mixing and Measuring Two-Component Epoxy Resin Glue Filling Machine

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$ 8500/pieces >=1 pieces
Delivery Time:	5-8 days
Payment Terms:	T/T 、Western Union、Money Gram
Supply Ability:	50 Piece/Pieces per Month

Contact Now

KPD Custom Automatic Mixing and Measuring Two-Component Epoxy Resin Glue Filling Machine

Description

Condition:	New	Weight (KG):	260
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Pump	Warranty:	1 Year
Applicable Industries:	Electronic Parts, Honeycomb Panel, Led Lights, PCB	Showroom Location:	Italy, Viet Nam, Thailand
Voltage:	220V	Product Name:	Glue Potting Machine
Type:	Standalone	Keyword:	Ab Glue Potting Machine
After-sales Service Provided:	Yes

Potting is a method for processing resins based on silicone, polyurethane or epoxy in liquid form to cover electrical components such as PCBs or for filling out cavities.
The precise operation of metering and mixing systems is particularly important for resin casting in the electrical and electronic industries. After the curing process, the resins protect the components against moisture, dust or damage and provide a long life-time. Our system achieve all requirements for a precise mixing, metering and application of resins, always aligned to the individual requirements of customers..

Models:			KPD-500 Automatic Multifunctional Glue Potting Machine
Suitable process			it can be used as a stand-alone machine or with the customer's originaassembly line to achieve on-line gluing.
Proportion of glue.			10:1 - 1:1
Hybrid approach：			Dynamic stirring mixing/static
Machine Stroke:			500x500x100mm
Speed：			XY axle 400mm/s
Accurate：			+0.05mm
Programme stock：			999
programmer：			Teach-In Programming
metrological:			High precision metering pumps
control method:			PLC+touchscreens
input method:			Touch screen + buttons + IO
Appearance Material：			Industrial square tube welding + 6061 alloy + cold rolled plate
Drum size:			A barrel 30L, B barrel 10L (can be customised)
External Dimensions.			1100x1350 X1600mm
Gum flow rate.			1-80g/5sec (customised large glue volume available)
trajectory:			Punching points, walking straight lines, curves, drawing circles, arcs, squaresand other irreqular shapes.
Supply Voltage			AC220V/50HZ

Potting&isolation &Casting:

Potting&isolation &Casting: electronics component , PCB board, Capacitor, power supply, transformer, ignition coil, reverse
sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts.,Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure package , relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , battery cover , rectifier and so on

Dispensing&Dosing :

Dispensing&Dosing : LED strip , wall washer, car light , lamps , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling .

Bonding&doming

LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , magnets, keychains , souvenirs ,arts , photo frame , and other arts graphics....

Do you offer oversea service?

We can offer online traning service and also can offer overseaservice if customer required, engineer will offer face to face service.

How dose your factory do regarding quality control?

We assure 1 year warranty for the main part,also we offer spare partfor back up.

Please check with sales engineer in detail.

What are your payment terms?

Normally, 50% advance by T/T and balance paid off before delivery.

Are you a factory or trading company ?

We are a factory with SGS certified and more than 20 patents.andcooperate with different customers coverd about 40 countries forover 15 years

Machine always drops resin Drops always happened when valve closed . The reason may be lowconcentration of glue , big air-pressure or large diameter of needles Narrow needles will effect the flow of the liquid and cause backpressure . lt will lead to dropping when the valve closed . Too narrow needles will effect the drainage of air when valve start to work, but itcan be solved if change suitable needles .

Conical needles with less back pressure and liquid flow smoothlyt is better to drainage of the air advance or use no-foam glue ordeaeration to avoid the air cause dropping after valve closed

Glue dropping not evenly

the problem cause mainly because of the storage flow pressure tankor air pressure is not stable.

Inlet pressure regulating table should be set lower 10-15psi thanfactory minimum pressure . The pressure in pressure tank should beset upper than the middle pressure of regulating table . lt should beavoided to use the pressure lower than the middle pressure ofregulating table .

Control pressure of rubber valve at least higher than 60psi to assuredglue evenly .

We should check the glue output speed at last . The glue is uneven ifthe time less than 15/1000s , the output speed more longer , the gluedispensing will be more stable .
