Advanced UV Dispensing Machine for LCD Panel SMT Assembly and Video Outgoing-Inspection

Large Image : Advanced UV Dispensing Machine for LCD Panel SMT Assembly and Video Outgoing-Inspection

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$ 8500/pieces >=1 pieces
Packaging Details:	Wooden Packing
Delivery Time:	5-8 days
Payment Terms:	T/T 、Western Union、Money Gram
Supply Ability:	50 Piece/Pieces per Month

Contact Now

Advanced UV Dispensing Machine for LCD Panel SMT Assembly and Video Outgoing-Inspection

Description

Condition:	New	Weight (KG):	260
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Meter Mix Pump	Warranty:	1 Year
Applicable Industries:	Electronic Potting Coating Sealing Bonding	Showroom Location:	Italy, Viet Nam, Thailand
Voltage:	220V	Product Name:	Glue Potting Machine
Type:	Standalone	Keyword:	Ab Glue Potting Machine
After-sales Service Provided:	Yes

Product Overview

LCD Panel SMT Assembly Machine Automatic UV Dispensing Machine CE Approved

LCD Panel SMT Assembly Machine Automatic Dispensing Machine RoHs Approved

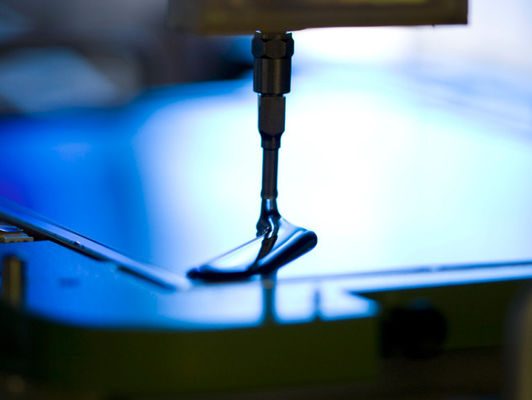

Automatic Dispensing Machine
Application

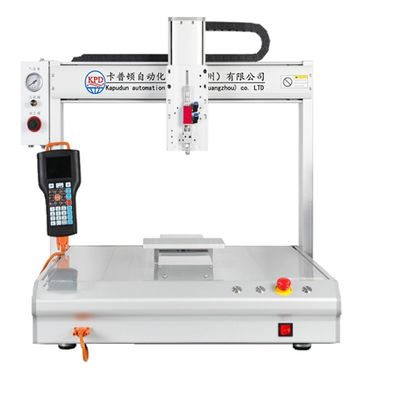

The Desktop Automatic Dispensing Machine is a fully-automatic & high resolution control system with 3 axis movement. This unit
also provides easier programming instructions, more parameters, a larger memory space and a higher speed.
EDN series models are CE, FCC, RoHs approved Cover, basket included with all units. This series ultrasonic cleaner are widely used
in Laboratory, Medical/ Dental, Gem/Jewelry, Opticals, Electronics, Automotive, Industry, Pharmaceutical to provide simple,
effective results for cleaning objects.

Features
* Operation with handheld LCD panel teach box, which is easy to program and learn.
* Functions of drawing points, lines, surfaces, arc, circle and consecutive interpolation of irregular curves to realize any 3D
non-planar trajectory path.
* Excellent teaching function to support array, graphical browsing, three dimensional elliptic, common graphical libraries
inserting, group editing and so on.
* MINISD file storage with high speed and 2G capacity can store 999 dispensing process documents.
* The size of glue, speed of glue spread, dispensing time, time of halting dispensing can be set by parameters.
* With Second special dispensing controller, glue outflow is quite stable without leaking and dripping.
* The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
* Powerful PC compatibility with the Logo shop software can import mainstream design software (such as Auto CAD, Coral Draw, etc.) to generate a variety of file formats (such as,.NC,.AI,.DXF,.JPG,.BMP, scanner, etc.
* It is applied to fluid dispensing, such as, UV glue, AB glue, COB (black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative and so on.

FEATURES AT A GLANCE

1. Vacuum material-feeding system or diaphragm pump feeding system
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system

6. Heating function

7. automatic cleaning function.

304stainless steel tank

Meter mix pump

High-quality motion components

Working principle

The machine will have two tanks for keeping Liquid A & B separately.
There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data .

PRODUCT SPECIFICATIONS

Models：	KPD-500 Automatic Multifunctional Glue Potting Machine
Suitable process：	It can be used as a stand-alone machine or with the customer’s original assembly line to achieve on-line gluing.
Proportion of glue:	10：1 – 1：1
hybrid approach:	Dynamic stirring mixing/static
Machine Stroke:	500x500x100mm
speed	X、Y axle 400mm/s
accurate	±0.05mm
Programme stock：	999
programmer	Teach-In Programming
metrological：	High precision metering pumps
control method：	PLC+touchscreens
input method：	Touch screen + buttons + IO
Appearance Material：	Industrial square tube welding + 6061 alloy + cold rolled plate
Drum size：	A barrel 30L, B barrel 10L (can be customised)
External Dimensions：	1100×1350 X1600mm
Gum flow rate：	1–80g/5sec (customised large glue volume available)
trajectory：	Punching points, walking straight lines, curves, drawing circles, arcs, squares, and other irregular shapes.
Supply Voltage：	AC220V/50HZ

Successful Project

Coils potting

transformers potting

ignitor potting

More sucessful project

1.Potting&Dispesing&Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reversesensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....
Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure package , soli relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , boattery cover , rectifier and so on

.2Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling...

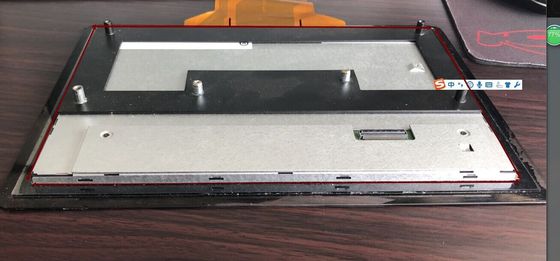

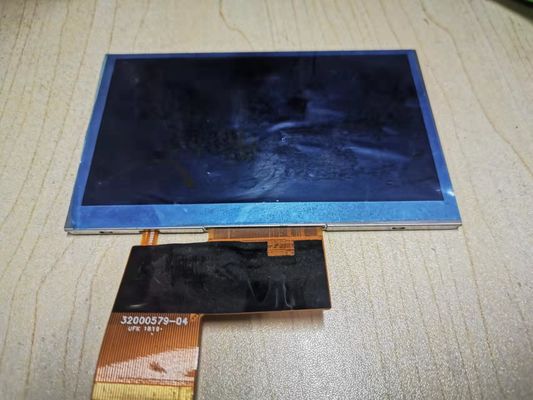

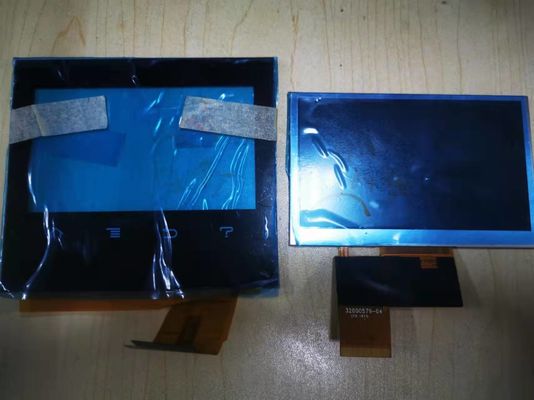

3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....

SIMILAR PRODUCTS

SALES AND SERVICE NETWORK

FAQ

Q1：Do you offer oversea service? A1：We can offer online traning service and also can offer oversea service if customer required, engineer will offer face to face service. Q2:How dose your factory do regarding quality control? A2:We assure 1 year warranty for the main part,also we offer spare part for back up.Please check with sales engineer in detail. Q3:What are your payment terms? A3: Normally, 50% advance by T/T and balance paid off before delivery.

Q4:Are you a factory or trading company ? A4: We are a factory with SGS certified and more than 20 patents,and cooperate with different customers coverd about 40 countries for over 15 years. Q5: Machine always drops resin A5: Drops always happened when valve closed . The reason may be low concentration of glue , big air-pressure or large diameter of needles. Narrow needles will effect the flow of the liquid and cause back pressure . It will lead to dropping when the valve closed . Too narrow needles will effect the drainage of air when valve start to work, but it can be solved if change suitable needles . Conical needles with less back pressure and liquid flow smoothly . It is better to drainage of the air advance or use no-foam glue or deaeration to avoid the air cause dropping after valve closed . Q6: Glue dropping not evenly A6:the problem cause mainly because of the storage flow pressure tank or air pressure is not stable. Inlet pressure regulating table should be set lower 10-15psi than factory minimum pressure . The pressure in pressure tank should be set upper than the middle pressure of regulating table . It should be avoided to use the pressure lower than the middle pressure of regulating table . Control pressure of rubber valve at least higher than 60psi to assured glue evenly . We should check the glue output speed at last . The glue is uneven if the time less than 15/1000s , the output speed more longer , the glue dispensing will be more stable .
